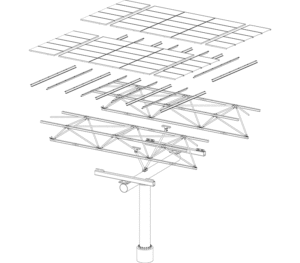

Long Span Canopy
- More kilowatts per acre
- East/West configuration option
- Full coverage canopy
- For parking lots
Technical Specifications
- Length: 100′-126′
- Width: 18′-24′
- Max Height: 16′-25′ to top of modules
- Clearance (min/max): 8’2″-16′
- Span Between Foundations: 50′-65′
- Cantilever: 10′-30′
- DC Capacity: varies by module
- Wind Load Capacity: designed and tested for 150 mph winds
- Snow Load Capacity: design and tested for 60 psf snow
- Standard steel coating: G90

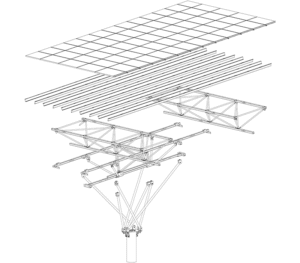

Double Cantilever
- Fewer foundations
- Higher system capacity
- Superior strength
- For parking lots
Technical Specifications
- Length: 60′-133′
- Width: 42′-49′
- Max Height: 25′ to top of modules
- Standard Clearance: 13’6″
- Span Between Foundations: 40′
- Cantilever: N/A
- DC Capacity: varies by module
- Wind Load Capacity: designed and tested for 150 mph winds
- Snow Load Capacity: design and tested for 60 psf snow
- Standard steel coating: G90

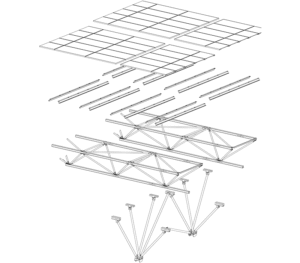

Parking Garage Canopy
- Lightweight material
- Efficient installation
- East/West configuration option
- For parking garages
Technical Specifications
- Length: 60′-126′
- Width: 18′-24′
- Max Height: 25′ to top of modules
- Span Between Foundations: 50′-65′
- DC Capacity: varies by module
- Wind Load Capacity: designed and tested for 150 mph winds
- Snow Load Capacity: design and tested for 60 psf snow
- Standard steel coating: G90

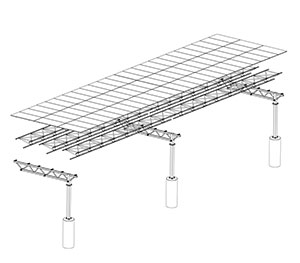

Fast Park
- 2-day installation
- For small commercial
- L-design unit
- Modular canopy unit
Technical Specifications
- Length: 45′
- Width: 25′
- Max Clearance: 13.5′
- Standard Clearance: 13’6″
- Span Between Foundations: 45′
- Module Count: 36
- DC Nameplate: 21.24kW
- Panels Q.Cells Q.Peak Duo XL – G11S-590W
- Inverter CPS 25K (or comparable)
90%
GROUND-LEVEL CONSTRUCTION
Ground-based construction reduces installation time on projects and increases the safety of all employees through a significant reduction of at-height work. 100% of DC electrical work is completed on the ground, including inverter mounting, wiring up to the AC output of the inverters and underside lighting. After assembly on the ground, the canopy is lifted into place and secured to the foundations. Mechanical installation is completed at this point.
